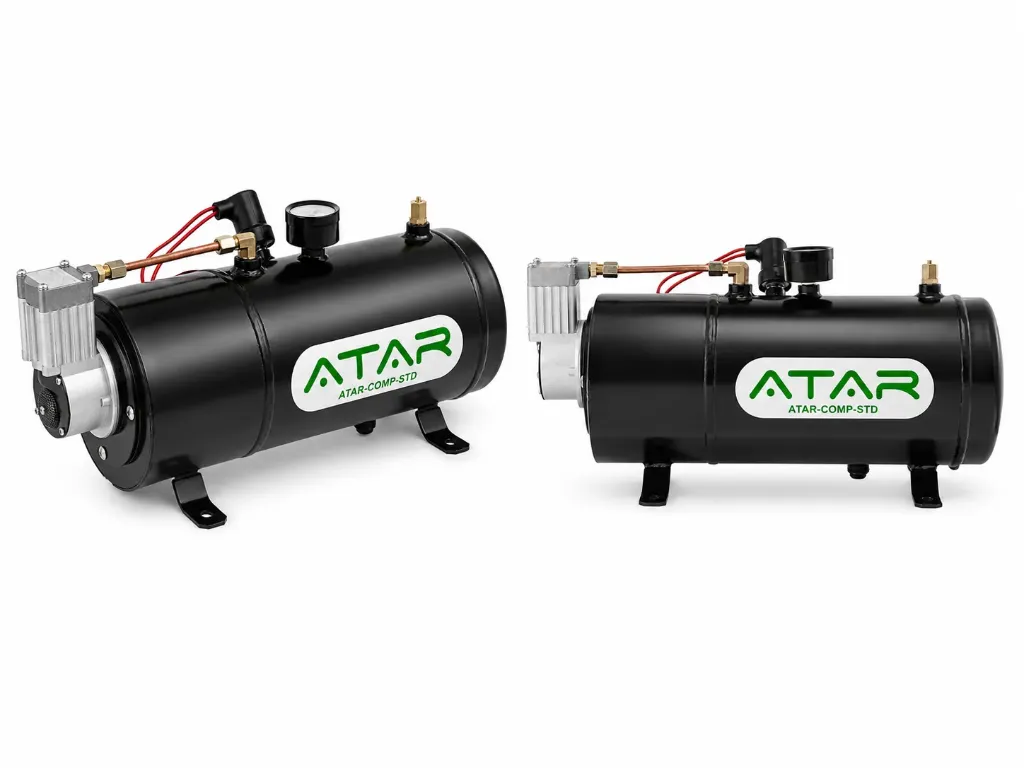

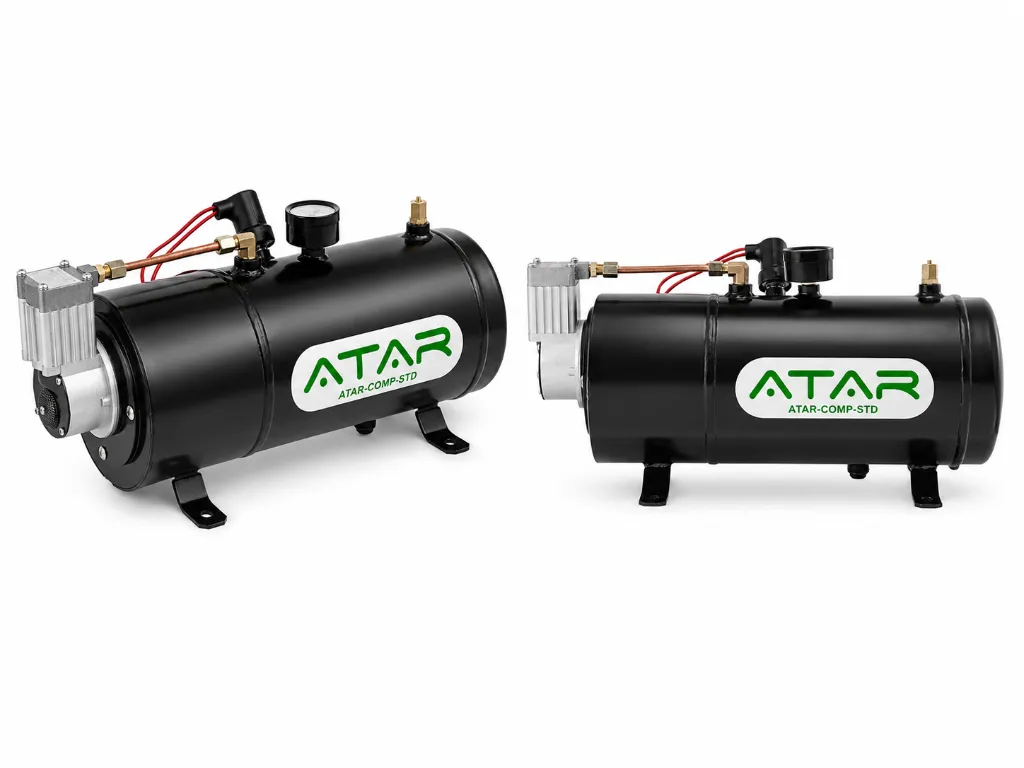

ATAR Air Compressor STD

Onboard 12 V supply for sprayers without a built-in compressor.

For self-propelled and pull-type sprayers without an onboard compressor. Powers the entire smart spraying boom from your tractor's 12 V supply quiet, compact, fit-and-forget.

12 V DC · 170 W
~3 L tank
90/120 psi
Plug & play with Central Unit

Supply voltage	12 V DC (12 – 14 V)
Power consumption	170 W nominal · ~14–18 A running
Air tank capacity	~3 L
Pressure switch (cut-in)	90 psi (6.2 bar)
Pressure switch (cut-out)	120 psi (8.3 bar)
Net weight	~4.5 kg

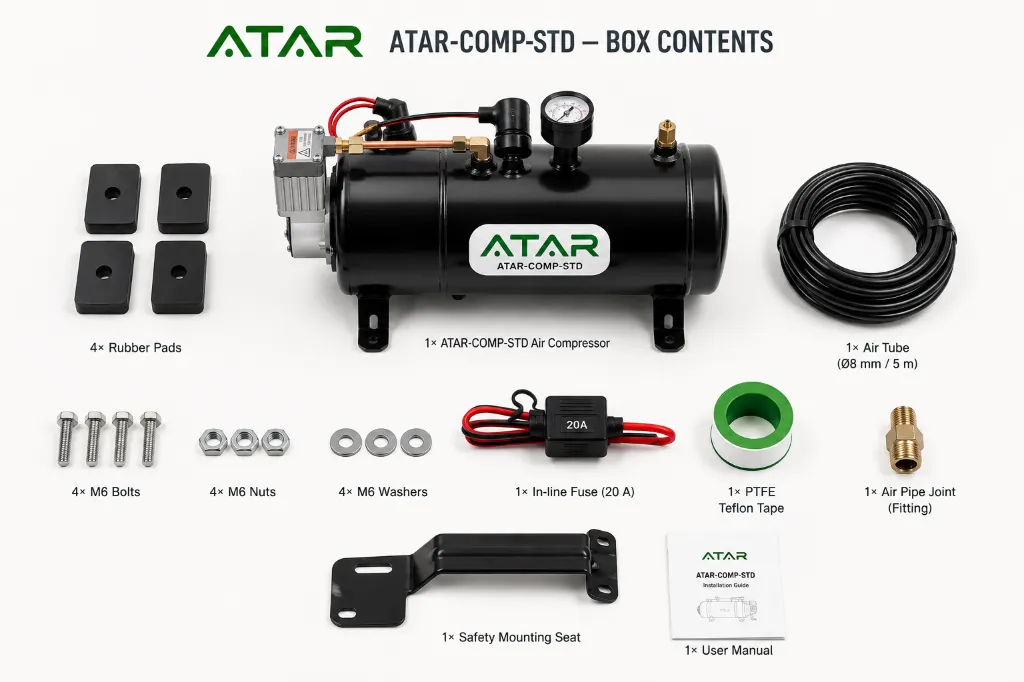

Mounting	4 × M6 bolts with rubber vibration pads (supplied)
Thermal protection	Built-in, ~20 min reset
Recommended wire / fuse	14 AWG (2.5 mm²) / 20 A in-line
Connections	M6 screws, ø6 mm air tube quick-connect
Operating temperature	–20 °C to +60 °C (same as the modules)
Duty	Intermittent — runs only when tank pressure drops

Compressor Atar Comp STD

170.00 €

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
